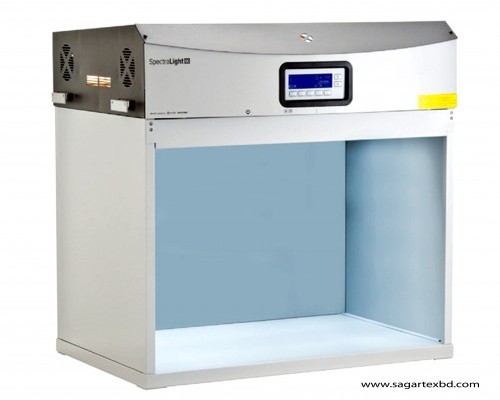

SpectraLight QC X-Rite Color Assessment Cabinet

The SpectraLight QC is the light booth of choice for color-critical visual assessment of large and small items under daylight and other lighting conditions; includes 7 light sources.

Control Lighting Conditions

Consistent quality control in color-critical product categories is finally possible thanks to the SpectraLight QC light booth and luminaire. This holistic visual color assessment system features state-of-the-art light sources, including natural filtered daylight, making it easy to meet practically any specification. A data-driven back-end ensures inter-instrument agreement across the supply chain, allowing unprecedented reporting and traceability on unit settings, lamp performance, operator certifications, and more.

The SpectraLight QC features seven light sources, more than any other light booth or luminaire on the market.This includes CIE Daylight, Cool White Fluorescent, Incandescent “A” & 2300K/Horizon, UVA, and two more fluorescent types (choice of U30, U35, TL83, and TL84).  Profiles can be created to share preferences and settings across the supply chain.

Benefits:

• Filtered tungsten halogen daylight provides the most accurate daylight simulation available for optimum visual assessment.
• Built-in sensors automatically adjust fluorescent lamp voltage to achieve instant stability and compensate for changes in lamp performance after many hours of use.
• Every instrument starts with exacting UV calibration. Built-in sensors monitor and correct UV output to maintain inter-instrument agreement.
• Real-time digital lux output can be adjusted to comply with ASTM and AATCC standards based on the sample type or user needs.
• X-Rite replacement lamps are marked with unique serial numbers to ensure consistent performance and better traceability.
• If you are moving to an LED light source. our LED lamp kit is an excellent option for your light booth. It provides exceptional color rendering using the same hybrid technology as the LED-BH1 CIE illuminant. This lamp kit is sold separately.

Color Light Box

Lighting is one of the most critical influencers of accurate color evaluation. By using the SpectraLight QC light booth during the design, specification, pre-production, production and quality assurance stages, color can be accurately evaluated under all relevant lighting conditions. This acts to reduce human error and waste due to rejects and rework, shorten time to market and improve overall product quality. The system also includes value-added training programs through the X-Rite Visual QC Institute.

Specifications

Parts & Accessories

1. LED Lamp Kit - 3'

LED Lamp Kit: 3 foot LED Lamps (QTY 2), with installation instruction sheet.

2. UVA, 36" T8 Lamps

Used with SpectraLight III, SpectraLight QC.

3. U30, 36" T8 Lamps

Used with SpectraLight III, SpectraLight QC.

4. U30, 36" T8 Lamps

Used with SpectraLight III, SpectraLight QC.

5. Incandescent A - 300 watt halogen lamp

Used with SpectraLight QC.

6. Daylight & Horizon 500 watt halogen 2 lamps

Used with SpectraLight QC.

7. Daylight & Horizon 500 watt halogen 2 lamps

Used with SpectraLight QC.
