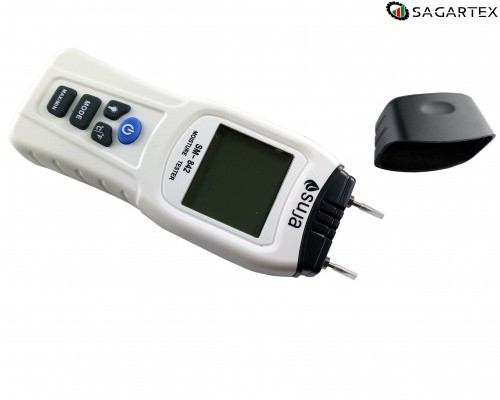

Wood and Building Moisture Meter

Wood and Building Moisture Meter @ Tk. 10,500

Item Specifications

Price	:	10500 BDT
Warranty Period	:	One Year Service Warranty
Model	:	SM-842
Stock	:	In Stock
Origin	:	Singapore
Discount	:	No
Brand	:	Suja Global
Product	:	Available
Delivery Charge	:	200 BDT

Description

Application

This moisture meter is designed for testing moisture level in wood and building materials. Combined the micro controller technique and integrated characteristics for 4 material groups Increase the accuracy of measurements. It is widely used for measuring the moisture level in the in the rough professional environment.

Features

Use on woods, bamboo, paper, wood fiber articles and building materials
Big LCD display with backlight
Replaceable electrode pins
2-in-1 Digital LCD readout and analog bargraph
Simultaneous measurement and display of moisture & temperature readings
Materials selection measurements
MAX/MIN/DATA Hold
Auto power off

Specifications:

Electrode	1Omm(replaceable)
Moisture Range	Wood: 5–70%RH
Moisture Range	Building materials: 0.1-2.4%RH
Temperature Rang	-20-70’C/-4-158’F
Moisture Accuracy	Wood:5-30%: +% 30-60%: +2% 60-70%: +4%
Moisture Accuracy	Other materials:+0.5 %
Temperature Accuracy	-20-70 C/-4-158 T: +1.5’C/2.7F
Auto Power Off	Meter shuts off automatically after 120 seconds of inactivity
Power Supply	One 9V battery
Operating Temperature	0-50’C/32-122 F
Operating Humidity	0-85 %RH

Operating Instruction:

7.1 Open the battery cover and install a 9V battery (battery type: 006P or NEDA1604 or IEC6F22) in the battery Compartment.

7.2 Power on the meter, and then select the suitable measurement mode according to the object to be measured. Please refer to the material table in the last page.

7.3 Remove the protective cap to expose the electrode pins, carefully push the electrode pins as far as possible into the materials under test. Take several readings in several locations on the material for the best representation of the amount of moisture present. The measured values will be displayed on the LCD
