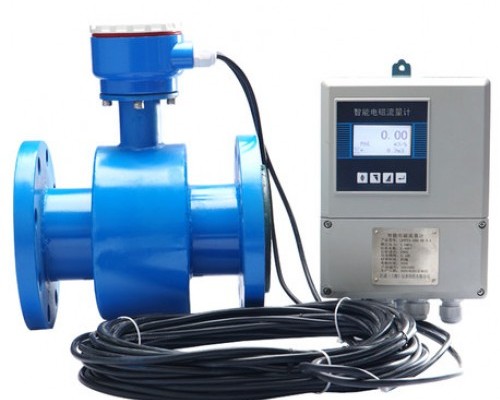

SG-EF50 Digital Electromagnetic Flow Meter

SG-EF50 Digital Electromagnetic Flow Meter @ Tk. 45,000

Item Specifications

Price	:	45000 BDT
Warranty Period	:	One Year Service Warranty
Model	:	SG-EF50
Stock	:	In Stock
Origin	:	Singapore
Discount	:	No
Accessories	:	Available
Brand	:	SUJA GLOBAL
Product	:	Available
Delivery Charge	:	200 BDT

Description

SG-EF50 diameter 50 mm water flow meter electromagnetic flowmeter

Model : SG-EF50

Electrode : 316L

Lining : PTFE

Nominal Diameter : DN100

Voltage : AC220V/DC24V

Nominal Pressure : 1.6MPa

Measurement Range : 1410m³/h

Brand: SUJA GLOBAL

Origin: Singapore

This technology of magnetic electromagnetic flowmeter has a number of advantages when it comes to liquid flow measurement. The sensors are generally inserted in line into the pipes' diameter, and are therefore designed such that they do not disturb or restrict the flow of the medium under measurement. As the sensors are not directly immersed in the liquid-there are no moving parts-there are no wear and tear concerns.

The method of magnetic electromagnetic flowmeter measures the volume flow, which means the measurement is insensitive to changes in effects such as fluid density, temperature, pressure, and viscosity. Once the electromagnetic water flow sensor measurement transmitter meters is calibrated with water, it can be used to measure the other types of conductive fluid-with no additional correction. This is a significant advantage that other types of flow meters don't have.

what's the technical parameters of magnetic electromagnetic flowmeter?

Production Name	Magnetic Electromagnetic Flowmeter
Medium	water;wastewater;Mud and varioue kinds of conductivity liquid
Diameter	DN10~DN2000mm
Accuracy	+/-0.5%
Temperature	<80ºC(rubber); <180ºC(PTFE)
Pressure	4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000)
Flow speed	0.3~10m/s
Requirement of pipeline	Upstream ≥5DN;Downstream≤3DN
Electrode	Stainless steel 316L(standard);Titanium;Tantalum;Hastelloy
Lining	PTFE;Rubber
Connection	Flange;thrad;clamp on
Body material	Cast steel ;stainless steel
Power supply	220V;24V;Battery
Output	Pulse;4~20mA;HART;RS485;MODBUS;GPRS
Communication	HART;RS485;MODBUS
Explosion proof	Customized
Protection	IP65 or IP68
Environment	Environment:-20~60ºC
Power	<20W
