Swatch Cutter @ Tk. 65,000
||Tony Instuments HK

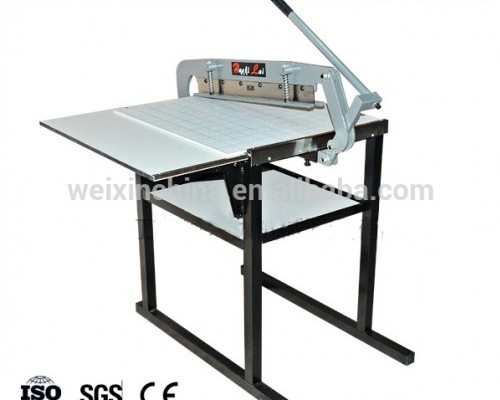

Swatch Cutter is an accurate & convenient Equipment for preparing swatches with pinking edges in multiple layers to a depth of 20 mm (0.8”) and width of 300 mm (12”).
Swatch Cutter is a user friendly versatile Swatch Cutting Machine for making swatches upto 300mm (12”) wide quickly & conveniently. The specially designed Equipment can cut swatches in multiple layers up to a depth of 20mm. It can make samples out of any type of fabric (woven/knitted or non woven) with the special imported Italian scissor.
The equipment is mounted on a strong & sturdy table for ease in operation. The sample sizes can conveniently determined by the graduated screen fixed on the fabric guide bar. The cutting area is fully protected by a transparent acrylic sheet for safety, which also helps the operator to view the cutting operation. The specially designed cutting board is provided to support the sample to cut & long life of the blade. A specially designed long handle is attached with the equipment for smooth cutting with minimum operator fatigue. The equipment is meticulously finished in blue & grey paint to give a gorgeous look.
- Specially designed equipment to prepare swatches of different size & design.
- Sample up to 300mm width & any length can be cut.
- Depth of the sample up to 20mm can easily be cut.
- A sturdy Wooden stand to keep the equipment stable during operation.
- Smooth precision-engineered components for exceptional performance.
- Pinking blade tip gives excellent look of swatches prepared.
- A Calibrated scale is provided to prepare sample of different sizes as required.
- Supplied with inspection certificates.
| Technical Specification || |
| Cutting Width || 300 mm |
| Cutting Height || 20 mm |
| Dimension of the cutting pad || 300 x 300 mm (±2 mm) |
| Graduated Scale || 32 Cm. on left side & 27 Cm. on right side; From the “0” |
| Position (cut position) L/C || 1 mm |
| Dimension of the Instrument (Including Table) || 700 (L) x 600 (W) x 1295 (H) mm |
| Dimension of the Instrument (Excluding Table) || 600 (L) x 600 (W) x 560 (H) mm |
| Net Weight of the Instrument || 32 Kg. (71 lb) |
| Net Weight of the Table : || 21 Kg. (46 lb) |
| Supplied Complete with below Accessories. || |
| Main Unit || 01 No. |
| Sturdy Table (Fitted or Dismantled Position) || 01 No. |
| Special Cutting Mat/ Board (Made in Italy) || 01 No. |
| Double End Spanner – (13-13) || 01 No. |
| Double End Spanner – (10-10) || 01 No. |
| This User’s Manual || 01 No. |
| Inspection & Conformance Certificate || 01 No. |
